DOI: https://doi.org/10.9767/bcrec.9.1.5374.45-52

The Photocatalytic Activity of SiO2-TiO2/Graphite and Its Composite with Silver and Silver oxide

1Research Group of Solid State Chemistry & Catalysis,Chemistry Department, Sebelas Maret University, Jl. Ir. Sutami 36 A, Kentingan, Surakarta 57126, Indonesia

2Research Group of Inorganic Materials, Chemistry Department, Sebelas Maret University, Jl. Ir. Sutami 36 A, Kentingan Surakarta 57126, Indonesia

Received: 1 Sep 2013; Revised: 26 Nov 2013; Accepted: 7 Dec 2013; Available online: 12 Mar 2014; Published: 30 Apr 2014.
Editor(s): Istadi Istadi
Open Access Copyright (c) 2014 by Authors, Published by BCREC Group
Creative Commons License This work is licensed under a Creative Commons Attribution-ShareAlike 4.0 International License.
Fulltext View|Download

Citation Format:

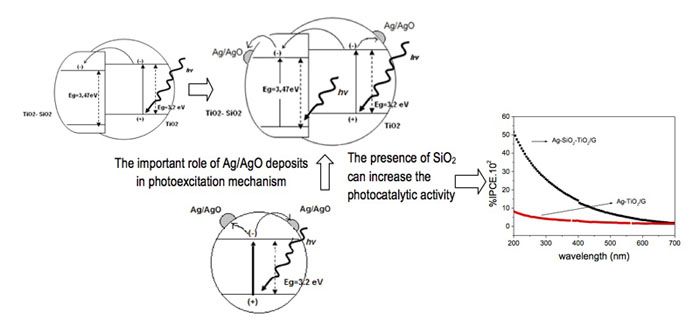

Cover Image
Abstract
This research study the mixed semiconductor of SiO2-TiO2 which was immobilized on graphite substrate and also studies the effect of surface modification on its mixed semiconductor. The surface modification was carried out by electrode position of Ag from 0.4 M of AgNO3 solution at various applied current. The electrode position was conducted for 30 minutes at 0.004; 0.008; 0.010; 0.012 and 0.014 A. In the electrode position cell, SiO2-TiO2/Graphite was used as cathode and a graphite rod was used as anode. The weight of deposited Ag was analyzed gravimetrically. The current efficiency of electrode position was calculated by comparing its experimental weight to its theoretical weight founded from calculation using Faraday’s equation for electrolytic cell. Meanwhile, the photo electrochemical testing was carried out to investigate the efficiency of induced photon to current conversion; it was measured as %IPCE (% Induced Photon to Current Efficiency). The crystallinity and crystal structure of the prepared materials were analyzed by X-ray diffraction and their surface morphology was analyzed by Scanning Electron Microscope (SEM). This research found that silver was deposited as silver metal, Ag and as silver oxide, AgO. The electrode position efficiency at applied current of 0.014 A is 92.30 % with diameter of cluster is 7 - 11.9 mm. It is founded that Ag and AgO deposition enhanced the efficiency of photon conversion into current up to 89.92 %. The optimum %IPCE value is at 28.6 % of Ag content. Ag-SiO2-TiO2/G has higher photo conversion than Ag-TiO2/G, shown by the %IPCE value at 300 nm is 83.25 % higher than Ag-TiO2/G. It indicates the significant role of silica network in photo excitation mechanisms in the composite material. © 2014 by Authors, Published by BCREC Group. This is an open access article under the CC BY-SA License (https://creativecommons.org/licenses/by-sa/4.0)
Keywords: Ag; photocatalyst; semiconductor; SiO2-TiO2; surface modification
Funding: Directorate General of Higher Education (DIKTI) Republic of Indonesia

Article Metrics:

Article Info
Section: Original Research Articles
Language : EN
Recent articles
The Photocatalytic Activity of SiO2-TiO2/Graphite and Its Composite with Silver and Silver oxide Cationic Ring Opening polymerization of ε-caprolactam by a Montmorillonite Clay Catalyst Kinetic Model of LiFePO4 Formation Using Non-Isothermal Thermogravimetric Analysis Frontmatter (Front Cover, Editorial Team, Indexing, and Table of Contents) Backmatter (Author Guideline, Publication Ethics, Copyright Transfer Agreement for Publishing Form) More recent articles
  1. Van de Krol, R., Goossens, A., Schooman, J. (1997). Spectroscopic investigation of lithium intercalation in thin films of anatase titanium dioxide. Material Research Society Symposium Proceeding, 448: 309-314
  2. Shao, G.N., Elineema, G., Quang, D.V., Kim, Y.N., Shim, Y.H., Hilonga, A., Kim, J-K., Kim,H.T. (2012). Two step synthesis of a mesoporous titania-silica composite from titanium oxychloride and sodium silicate. Powder Technology, 217: 489-496
  3. Demirörs, A.F., van Blaaderen, A., Imhof, A. (2009). Synthesis of Eccentric titania-silica core-shell and composite particles. Chemistry of Materials, 21: 979-984
  4. Zhang, H., Quan, X., Chen, S., Zhao, H. (2006). Fabrication and characterization of silica-titania nanotubes composite membrane with photocatalytic capability. Environmental Science Technology, 40: 6104-6109
  5. Linsebigler, A.L., Lu, G., Yates, J.T. (1995). Photocatalysis on TiO2 surfaces: Principles, Mechanism and Selected Result. Chemical Review, 95: 735-758
  6. Xie, Y. and Yuan, C. (2004). Visible Light Induced Photocatalysis of Cerium Ion Modified Titania Sol and Nanocrystallites. Journal of Material Science and Technology, 20(1): 14-18
  7. Nugraheni, L.R. (2006). Sintesis Semikonduktor Komposit TiO2-SiO2 menggunakan pelarut Metanol-Isobutanol dan Sensitisasi Komposit dengan Mn(bpy-pts)2Cl2, Master Thesis, Universitas Sebelas Maret, Surakarta, Indonesia
  8. Nasr, C., Kamat, P.V. and Hotchandani, S. (1998). Photoelectrochemistry Composite Semiconductor Thin Films. Photosensitization of the SnO2/TiO2 Coupled System with a Ruthenium Polypyridyl Complex. Journal of Physical Chemistry B., 102: 10047-10056
  9. Li, Y., Hagen, J., Schaffrath, W., Otschik, P. and Haarer, D. (1999). Titanium Dioxide films for photovoltaic cells derived from sol-gel process. Solar Energy Materials and Solar Cells, 56: 167-174
  10. Liu, F., Wang, T., Li, J.Q., Zhao, Y.Q and Zhay, M.C. (2013). Optical and magnetic properties of Co-TiO2 sandwich composite films grown by magnetron sputtering. Con-densed Matter, http://arxiv.org/abs/cond-mat/0204419
  11. Lincot, D., Froment, M. And Cachet, H. (1999). Advance in Electrochemical Science and Engineering, vol. 6, 165, Eds-Wiley-VCH, New York
  12. Rahmawati, F., Kusumaningsih, T. Hapsari, A.M., Hastuti, A. (2010). Ag and Cu loaded on TiO2/Graphite as a catalyst for Escgerichia coli-contaminated water disinfection. Chemical Papers, 64(5): 557-565
  13. Fodor, K., Bitter, J.H., de Jong, K.P. (2002). Investigation of Vapor-Phase Silica deposition on MCM-41 using tetraalkoxysilanes. Microporous and Mesoporous Materials, 56: 101-109
  14. Whang, C.M., Yeo, C.S. and Kim, Y.H. (2001). Preparation and characterization of sol-gel derived SiO2-TiO2-PDMS composite films. Bulletin of Korean Chemical Society, 22(12): 1366-1370
  15. Zhou, F., Liang, K., Shao, H. (2005). Study on the cracking of SiO2-TiO2 films prepared by sol-gel method. Materials Science Forum, 475-479: 1227-1230
  16. Nilchi, A., Darzi, S.J., Garmarodi, S.R. (2011). Sol-gel preparation of nanoscale TiO2/SiO2 composite for eliminating of Con Red azo dye. Materials Sciences and Applications, 2: 476-480
  17. Huang, X., Wang, G., Yang, M., Guo, W., Gao, H. (2011). Synthesis of polyaniline - modified Fe3O4/SiO2/TiO2-composite microspheres and their photocatalytic application. Materials Letters, 65: 2887-2890
  18. Wang, H., Zhong, W., Xu, P., Du, Q. (2005). Polyimide/silica/titania nanohybrids via a novel non hydrolytic sol-gel route. Composite: Part A, 36: 909-914
  19. Sato, S., White, J.M. (1980). Photodecomposition of water over Pt/TiO2 catalysts. Chemical Physics Letters, 72: 83-86
  20. Loganathan, K., Bommusamy, P., Muthai-ahpillai, P., Velayutham, M. (2011). The Syntheses, Characterizations, and Photocatalytic Activities of Silver, Platinum, and Gold Doped TiO2 Nanoparticles. Environmental Engineering Research, 16(2): 81-90
  21. Yang, H., Coombs, N., Dag, O., Sokolov, I., Ozin, G.A. (1997). Free standing mesoporous silica films: morphogenesis of channel and surface patterns. Journal of Material Chemistry, 7(9):1755-1761
  22. Hu, S., Li, F., Fan, Z. (2012). Preparation of SiO2-coated TiO2 composite materials with enhanced photocatalytic activity under UV light. Bulletin of Korean Chemical Society, 33(6): 1895-1899
